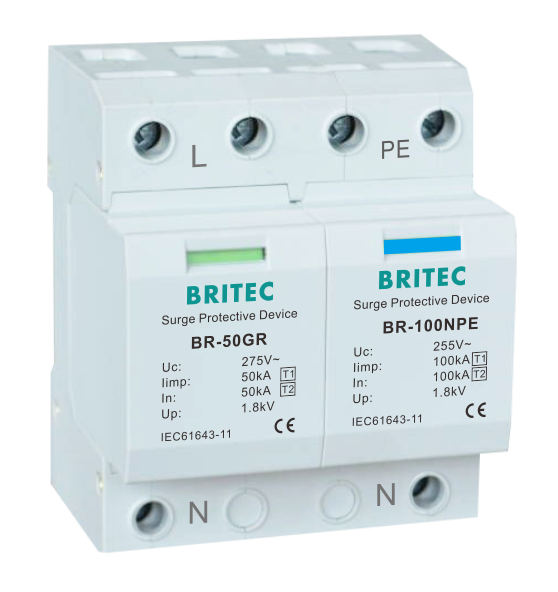

BR-50GR 1P+N 50kA Class 1 Surge Protection Device SPD lightning protection

Name: BR50GR 1PN 50kA Class 1 Surge Protection Device SPD lightning protection
Brand: BRITEC
Price: 1 USD

China BR-50GR 1P+N 50kA Class 1 Surge Protection Device SPD lightning protection wholesale

Brand Name : BRITEC

Model Number : BR-50GR 1P+N

Certification : TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard

Place of Origin : China

MOQ : 1 Piece/Pieces

Payment Terms : L/C, D/A, T/T, Western Union

Supply Ability : 50000 Piece/Pieces Month

Delivery Time : Shipped in 15 days after payment

Packaging Details : EXPORT PACKING

Item Name : surge protection device

Type : Ac type1 Surge Protector

Classified test : class I+ II

Material : Thermoplastic UL94-VO

Pole numberCertificate : 1+1

Application : surge arrester is suitable for TN-S system

Contact Now

50kA Single Phase 1+1 Type 1 Class I Lightning Surge Protective Device

lightning absorber Product Features:

1. Inside over-current and over-heat protection, temperature control open circuit.

2. Module design, convenient installation, could be replaced online.

3. Time of response <100ns

4. The color of visible window shows operating status, green means normal, red means abnormal

We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.

Technology characteristic:

BR-50GR 1P+N 50kA Class 1 Surge Protection Device SPD lightning protection

Product characteristics:

Specification	BR-50GR 3+1	BR-25GR 1+1
Item name	Surge Arrester	Surge Arrester
SPD dassification according to EN61643-11	Type 1	Type 1
SPD dassification according to IEC61643-11	Class I	Class I
Max continuous 0perating a.c. voltage Uc	275V	275V
Lightning impulse current (10/350µs) limp	50kA	50kA
Norminal discharge current (8/20µs) In	50kA	50kA
Voltage protection level Up	≤1.8kV	≤1.8kV
Follow current extinguishing capability a.c. lifi	3kA rms	3kA rms
Max. backup fuse	500A	500A
Response time tA	≤100ns	≤100ns
For mounting on	35mm Din rail	35mm Din rail
Degree of protection	IP20	IP20
Payment term	30% deposit in advance,70% before shipment,100% T/T in advance
Certificate	TUV/SEMKO/CB/CE/ROHS/ISO9001 approved standard
Logo	Customized logo with Decal/ Frosted/ Print are available as request
Design ability	We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production)

Workshop:

Britec owns advanced test equipments and product line, perfect management, professional technical

personnel and well-trained workers. Britec team keep developing newest product for our customer, that

is why technical level of our products can be reached to the leading level, we also can help customer

OEM/ODM.

BR-50GR 1P+N 50kA Class 1 Surge Protection Device SPD lightning protection

Company Information:

Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD)

manufacture with many years experiences.We are providing quality products, competitive price, prompt

delivery and excellent service, and looking forward to even greater cooperation with overseas trade

based on mutual benefits.

BR-50GR 1P+N 50kA Class 1 Surge Protection Device SPD lightning protection

Exhibition:

Britec have strong sales team, our surge protection device are sold to many countries around the world.

Europe and Asia are our main market. We would like to cooperate with global customers and help you

success in your market.

BR-50GR 1P+N 50kA Class 1 Surge Protection Device SPD lightning protection

Certifications:

Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company

implements ISO9001 quality mangement system.

BR-50GR 1P+N 50kA Class 1 Surge Protection Device SPD lightning protection

Product Uses:

Britec have developed a wide range of products mainly covering requirements in the area of low voltage

lightning protection, such as SPD for power system,PV system and data , etc. All these products have

been widely applied in electronic system, computer network and security system, protection for power

industry, petroleum chemical industry and national defense industry.

BR-50GR 1P+N 50kA Class 1 Surge Protection Device SPD lightning protection

FAQ

How about your experience?

We have our own factory and in-house test laboratory, our R&D department have more than

20 years experiences.

What's your advantage?

Fast delivery: 2-3 weeks. Large scale production drive cost down: 300,000 pieces per year.

Qulaity recognized :cooperate with transnational company.

Is custom design package acceptable?

Inner box and out carton are made as per international standard.

We can make packaging according to customer's need.

Could you do OEM for us?

Sure,we accept OEM and ODM order,please supply with the letter of Authorization for the brand.

How about warranty?

5-8 years.

Could I buy 1pc sample first and small order?

Of course,support sample order, especially for new customers under certain condition.

How long make a sample?

3-5 days.

How does your company do regarding the quality control?

Quality is priority. We always attach great importance to quality control from the beginning to the end of

the production. IQC inspects the components, the patrol inspection is done during production and all the

goods to be tested 100% before leaving the factory..
