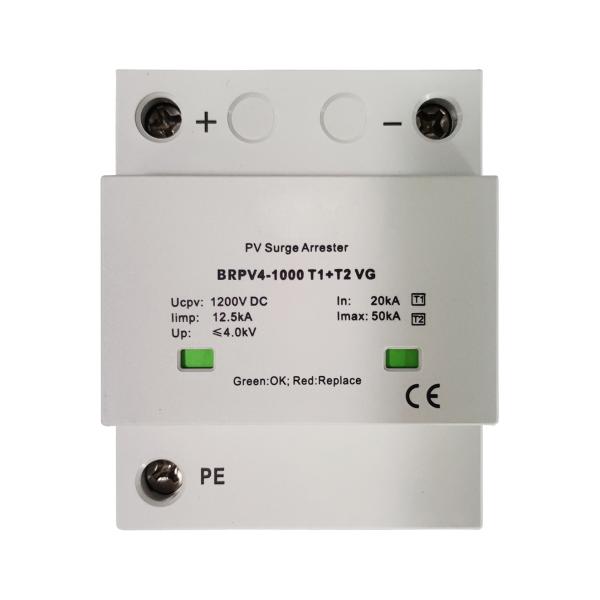

12.5kA Type 1+2 600v 1200v PV Surge arrester Photovoltaic DC Surge Protection Device
12.5kA Type 1+2 PV Surge Protector Feature:
Like all outdoor structures, PV installations are exposed to the risk of lightning which varies from region to region. Preventive and arrest systems and devices should be in place.
• Type 1+2 surge protector for photovoltaic.
• Lightning impulse current(10/350us):12.5kA.
• Max. continuous operating dc voltage:600V DC.
• EN61643-11 and EN50539-11 compliance.
12.5kA Type 1+2 PV Surge Protector Product Details:
| | BRPV4 600 |
| SPD classification according to EN61643-11 | Type 1+Type 2 |
| SPD classification according to EN50539-11 | Class I+Class II |
| Max. continuous operating dc voltage Ucpv | 600V |
| Lightning impulse current (10/350us) Iimp | 12.5kA |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 50kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤2.6kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermal plastic UL94-V0 |
| Degree of protection | IP20 |
| Order Code | B8001 |
| Order code(With remote signal) | B8003 |
Dimension:
12.5kA Type 1+2 PV Surge Protector Application:
• For use in photovoltaic power supply systems up to 600 V d.c.
• Protect against lightning surge voltages in photovoltaic power supply network.
• Protect sensitive electronic equipment from destructive transient over voltages originating from lightning strikes and electrical disturbances.
• Utilized in protecting photovoltaic systems. It is specially engineered to serve as a security device against both direct and indirect lightning discharges.
12.5kA Type 1+2 PV Surge Protector Advantage:
• Improved life expectancy.
• Optical status indicator via LED.
• Space-saving enclosure with a width of only four modules for up to 600 V d.c.
• Operating state / fault indication by green / red indicator flag in the inspection window.
Our Services:
• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Why need surge arrester?
Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility. The use of adapted surge protections is then highly recommended.
Installation instruction:
• Mount the SPD on 35 mm DIN rail.
• The SPD is placed in parallel between the energized conductors and ground.
• The selected SPD must be specifically designed, rated and approved for application on dc PV voltages.
Company profile:
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
Our certificate:
We got CB, CE, TUV,RoHS Certificate:
Payment:
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment. |
| FOB |
| CIF | 30% T/T in advance, paid the balance against copy of B/L. |
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight. |
| Paypal | Amount lower than 5000usd. |
| Delivery Time | 15-30 days after receiving deposit. |
Factory:
FAQ:
Q1: How long is your products warranty?
A: The warranty period of our products is 2 Years.
Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.
Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
